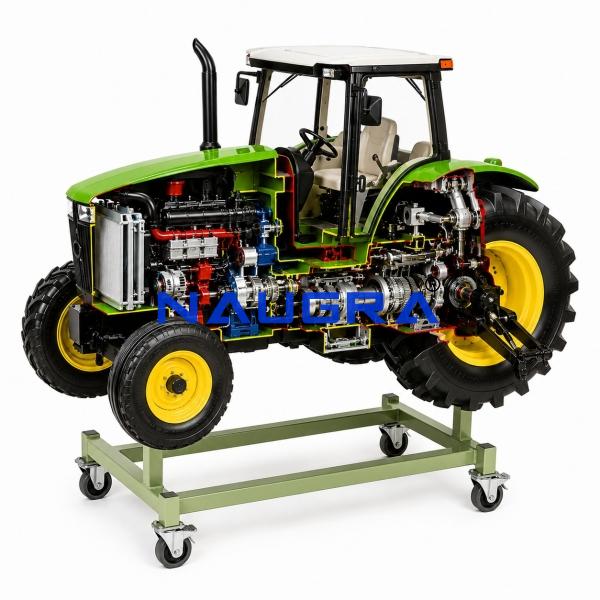

Farm Tractor Cutaway Trainer 4-Stroke Diesel Engine
The Farm Tractor Cutaway Trainer 4-Stroke Diesel Engine is built at our works in Ambala Cantt and supplied to vocational training laboratories worldwide, as a single unit or in quantity against a tender schedule. It is listed with the rest of our Technical And Vocational Education Lab.
The Farm Tractor Cutaway Trainer – 4-Stroke Diesel Engine is a fully functional educational training model designed to demonstrate the construction, operation, and maintenance of a modern agricultural tractor. Precision cutaways expose the internal components of the engine, transmission, steering, and fuel systems, allowing students to clearly observe the working principles of each assembly during operation.
The trainer has been professionally sectioned and finished using contrasting colors to distinguish individual components, lubrication passages, and cross-sectional views, making it easier for learners to identify and understand each mechanical system. Selected components are chrome-plated and galvanized to provide excellent corrosion resistance and ensure long service life in laboratory environments.
The unit is electrically driven, allowing all moving components to operate safely at a reduced speed. This enables students to observe the movement of pistons, valves, gears, steering components, and transmission mechanisms without the hazards associated with a running engine. Mounted on a heavy-duty steel stand with industrial wheels, the trainer can be easily transported between classrooms and workshops.
Fully operational cutaway tractor training model
Precision sectioned components for maximum internal visibility
Professionally color-coded assemblies for easy identification
Electrically operated for safe classroom demonstrations
Reduced operating speed for detailed observation of moving parts
Durable chrome-plated and galvanized components for extended service life
Heavy-duty mobile steel stand with lockable wheels
Ideal for practical demonstrations, maintenance training, and technical education
Engine Type: 4-Stroke, 2-Cylinder Diesel Engine
Fuel Injection: Indirect Injection System
Cooling System: Water Cooled
Valve Mechanism: Overhead Valves (OHV)
Fuel Pump: In-Line Fuel Injection Pump
Steering System: Globe-Type Steering Gearbox
Transmission: 6 Forward Speeds + 2 Reverse Gears
Operation: Electrically Driven
Power Supply: 230 V AC (or available as 120 V AC upon request)
Mounting: Heavy-Duty Steel Stand with Wheels
Four-stroke diesel engine operation
Fuel injection system study
Valve timing and valve train operation
Cooling and lubrication system analysis
Gearbox and transmission mechanism
Steering system operation
Power transmission through the drivetrain
Preventive maintenance and servicing procedures
Identification of internal engine components
Agricultural Machinery Training
Tractor Maintenance Education
Automotive Engineering Laboratories
Mechanical Engineering Departments
Technical and Vocational Training Centres
Industrial Skills Development Programmes
Farm Equipment Service Training
Research and Demonstration Laboratories
Agricultural Engineering Colleges
Engineering Universities
Technical Training Institutes
Vocational Education Centres
Automotive Training Schools
Agricultural Equipment Manufacturers
Farm Machinery Service Centres
Industrial Training Facilities
Research and Development Laboratories
