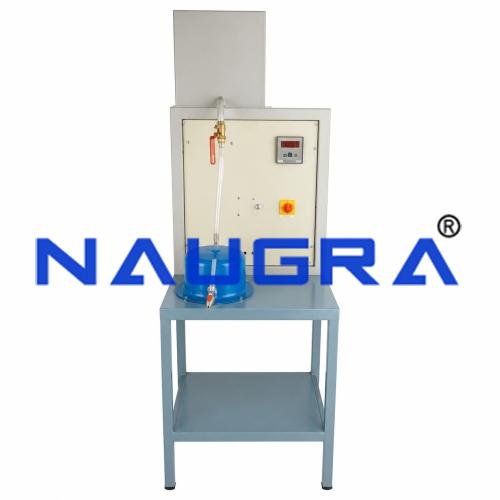

Stefan Boltzman Apparatus for engineering schools

Stefan Boltzmann Apparatus Manufacturer, Supplier and Exporter – Designed for engineering and heat transfer laboratories, this apparatus is used to determine the Stefan-Boltzmann constant and study thermal radiation from a heated surface. The setup consists of a copper hemisphere, heated water jacket, and copper test disc with precision temperature measurement, enabling accurate analysis of radiative heat transfer.

Experiments:

• Determination of the Stefan-Boltzmann constant

• Study of the effect of hemisphere temperature on thermal radiation

Utilities Required:

• Electric supply: 220 V AC, Single Phase, 2 kW

• Laboratory table for mounting the setup

Technical Specifications:

• Copper hemisphere: 200 mm diameter (approx.)

• Stainless steel jacket: 250 mm diameter (approx.)

• Copper test disc: 20 mm diameter × 1.5 mm thick

• Stainless steel water tank: 12 litres

• Heater: Nichrome wire immersion heater

• Digital temperature controller: 0–199.9°C (for water tank)

• Digital temperature indicator: 0–199.9°C, with multi-channel selector switch

• Temperature sensors: RTD PT-100

• Mounted on a sturdy powder-coated frame

• Supplied with detailed English instruction manual
