Product Supply Code: ADM-007-NE

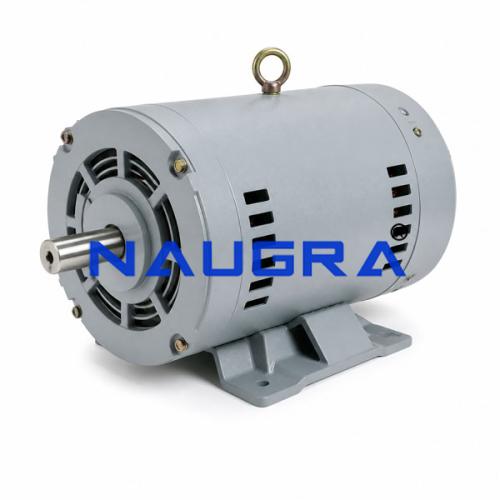

Details for Universal Motor for AC Repulsion Motor for Electrical Lab
Universal Motor for AC Repulsion Motor for Electrical Lab for Electric Motors Teaching Labs - For demonstrating to students the complete know of the Basics, Components, Starting methods, Speed-Torque, Wear & Tear & Maintenance of these motors packaged in small rating. Students can make connections of their own with the help of the terminations provided for study of features viz Starting methods, Speed-Torque, Effect of reduced voltage, Blocked rotor test.
Technical Specs :
Power ratings available : 350W / 750W
Voltage Input: 230V AC 50hz or 230 DC
RPM: 6000 / 10000
Single / Double shaft extension, SPDP, IP23, IC01, B3, Class-B, Short time duty, Solid yoke.
List Of Experiments :
Starting by AC DOL Starter
Starting by reduced AC voltage starter.
Starting by DC Starter
Speed control by DC SCR Drive
Load test & No load test of machine
Blocked rotor test
Cold Resistance & Hot Resistance
Motor Operation parameters
Basic Overhauling Know how.
