Hydraulic Test Bench

Technical0001

Hydraulic Test Bench



We are Leading Supplier of Hydraulic Test Bench in India. We also bulk supply Hydraulic Test Bench for laboratory tensers.


Features


The basic Hydraulic Bench is of volumetric type and has been
designed to provide continuous and controlled supply of water to conduct
various experiments using auxiliary modules in typical Fluid Mechanics
and ...

Bernoulli s Theorem Demonstration

Technical0002

Bernoulli s Theorem Demonstration



We are Leading Supplier of Bernoulli’s Theorem Demonstration in
India. We also bulk supply Bernoulli’s Theorem Demonstration
for laboratory tensers.


Features


This equipment enables to study the Bernoulli’s theorem through the use of a classical venture tube
Equipped with 6 static tapping points and a pilot ...

Centrifugal Pump Demonstration Unit

Technical0003

Centrifugal Pump Demonstration Unit



We are Leading Supplier of Centrifugal Pump Demonstration Unit in
India. We also bulk supply Centrifugal Pump Demonstration Unit
for laboratory tensers.


Features


This Centrifugal Pump Demonstration Unit enables students to perform the characteristics studies of a centrifugal pump
The centrifugal pump is designed with transparent ...

Hydraulic Bench

Technical0004

Hydraulic Bench
We are Leading Supplier of Hydraulic Bench  in India. We also bulk supply Hydraulic Bench  for laboratory tensers.
Features : The hydraulic bench is made of fiberglass reinforced polyester and mounted on wheels for mobility.
Technical Specifications :
Centrifugal pump : 0.37kw, 30-80 liter/min at 20.1 – 12.8m,  220 ~ 240V, ...

CNC Trainer Lathe Machine

Technical0005

CNC Trainer Lathe Machine
We are into manufacturing and exporting a wide range of CNC Trainer Lathe Machine. Offered Machines offers much more flexibility and are made using superior quality raw materials and advanced technology. Additionally

CNC Lathe Trainer

Technical0006

CNC Lathe Trainer
With vast experience and knowledge we are involved in offering an extensive range of CNC Lathe Trainer. Offered machines are highly appreciated among our clients due to their best quality. These are available in market in various specifications as per the requirement of our clients.
Application Industry: To turn Instruments, Electronic Connector, Medical Apparatus etc ...

Computrised Lathe Machine

Technical0007

Computrised Lathe Machine
This Computrised Lathe Machine is suitable for small mechanical processing, Repair match means. Desktop Lathe machine. Our range of machines is known for its low maintenance and long working life.
Standard Accessories: Three-jaw chuck,Wrench kit,Common screw,General Top
Optional Accessories:  Adjustable top, Four-jaw chuck, spring collect,Quick-change tool ...

Micro CNC Lathe

Technical0008

Micro CNC Lathe
We are counted amongst the top companies involved in offering an extensive range of Micro CNC Lathe. These are portable devices and are offered with a USB connection. Offered products are highly reckoned among our clients due to their hassle free performance and highly durability. Apart from this, we offer these products in market at very reasonable prices.
Features: High ...

Micro CNC Center

Technical0009

Micro CNC Center
What makes our organization truly unique is the fact that we hold expertise in the manufacture and supply of Micro CNC Center. We have huge stock of these micro cnc mills. The end milling capacity is 16 mm and cross axis of 220 mm. These are designed to run efficiently on the windows operating system and have excellent interface. The sturdy nature of these micro cnc mills is ...

CNC Mill Trainer

Technical0010

CNC Mill Trainer
ESS KEY manufactures wide range of cutting and designing tools in different sizes. CNC Mill Trainer is one of the finest tool offer a fine finishing. It is applicable in the cutting and designing of materials such as ceramic, carbon, steel, woods and glass fibers. Besides that the same machines are also applicable in the metallic substances like copper and aluminum. We offer ...

CNC Mill Trainer

Technical0011

CNC Mill Trainer
Owing to our rich industry experience, we are involved in the manufacture and export of CNC Mill Trainer. True to its name, these are used in the heavy industries and other engineering industries for the cutting and several related purposes. These have spindle speed of 50 to 3000 rpm and shipping weight of 55 kg. The experts operate these turning centers in the best possible ...

CNC Mill Trainer

Technical0012

CNC Mill Trainer
Backed by our immense industry experience, we are able to manufacture and export of CNC Mill Trainer. Especially designed for the educational institutes considering their requirements, these mill trainers have end milling capacity of 16 mm and longitudinal axis of 100 mn.

Features:
    Output power of 350 ...

Static & Dynamic Balancing Apparatus

Technical0013

Static & Dynamic Balancing Apparatus
This equipment is designed for carrying out the experiment for balancing a rotation mass system. The apparatus consists of a stainless steel shaft fixed in a rectangular frame. A set of four blocks with a clamping arrangement is provided. For static balancing, each block is individually clamped on shaft and its relative weight is found out using ...

Motorised Gyroscope Apparatus

Technical0014

Motorised Gyroscope Apparatus
The apparatus consists of a rotor mounted in bearings. This rotor is free to rotate about  (i) Its own axis i.e. axis of spin. (ii) Axis of precession. (iii) Axis of gyroscopic couple
 The rotor is connected to the variable speed motor. The weight of the motor is balanced by another weight, which is on either side of the rotor. By putting ...

Motorised Governor Apparatus

Technical0015

The unit consists of a main spindle driven by a variable speed motor. Three
different governor assemblies can be mounted over the spindle. A with pointer   measures the lift of the governor. Students can calculate characteristics of governor at and compare their performance viz. Sensitiveness, stability, governor effort ...

Whirling Of Shaft Apparatus

Technical0016

Whirling Of Shaft Apparatus

The unit consists of a base upon which the bearing holders and driving motor are bearing can be fitted in a holders to end conditions for test shafts, viz. Both end fixed and one end free, one end fixed. A Variac provided control of driving motor. The unit demonstrates the phenomenon of whirling of shafts with single rotor. As the test is destructive, after ...

Cam Analysis Apparatus

Technical0017

Cam Analysis Apparatus

Vibration Lab. ( Complete 11 Experiment On 1 Frame

Technical0018

Vibration Lab. ( Complete 11 Experiment On 1 Frame

The VIBLAB is designed to help in conducting various experiments to illustrate and verify the principles and relations involved in the study of vibrations.


This   apparatus enables a comprehensive range of Vibration Experiments to be conducted on single basic framework. The frame is robustly constructed from ...

Generation Of Involute Gear Tooth Profile

Technical0019

Generation Of Involute Gear Tooth Profile

This board illustrates the process of cutting of involutes Gear Teeth, by use of rack type cutter It consists of 3 white acrylic discs A, B, C. having pitch circle diameter 450 mm, 300 mm & 200 mm respectively. A gear tooth profile with module 25mm can be traced out on a peace of paper placed between disc and cutter. An affect of ...

Interference & Undercutting

Technical0020

Interference & Undercutting

The board shows the demonstration of this phenomenon of Interference and

Undercutting. When we rotate the teeth in anticlockwise direction, as the teeth is undercut is gives us a smooth working. When we give a rotation in clockwise direction, we can observe that the rack tip will be resisted by the tooth flank thus giving interference

Coriollis Component of Acceleration

Technical0021

Coriollis Component of Acceleration

This set up is designed to study coriollis component of Acceleration of a slider crank Mechanism. The apparatus uses hydraulic analogy to represent the rotating slider. It consists of a rotating block with two arms in opposite direction. These tubes can be rotated at various speeds by using a swinging field motor, which also acts as a dynamometer to ...

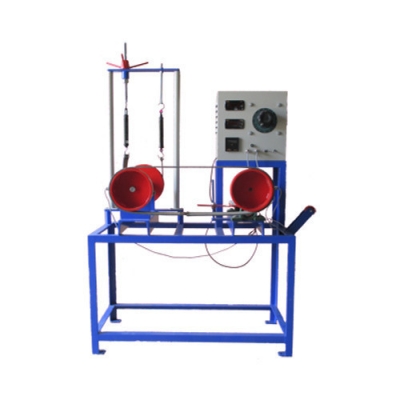

Slip & Creep Measurement Apparatus

Technical0022

Slip & Creep Measurement Apparatus

The apparatus consists of a variable speed D.C. Motor, Driving pulley and Driven pulley of equal diameter. The pulleys are mounted on input shaft (Motor shaft) and output shaft. The driven pulley can slide on the base with bearing block to change initial tension in belt. Brake drum is mounted on output shaft helps to measure power output. The motor ...

Epicyclic Gear Train Holding Torque Apparatus

Technical0023

Epicyclic Gear Train Holding Torque Apparatus

It is a motorized unit consisting of SUN gear mounted on input shaft. Two plane gears mesh with the annular gear. These planet gears are mounted on a common arm to which output shaft is fitted. Loading arrangement is provided for loading the system and to measure Holding Torque.





Specifications:

Journal Bearing Apparatus

Technical0024

Journal Bearing Apparatus
The apparatus consists of a plain steel shaft encased in a bearing and directly driven by a small electric motor. The bearing is freely supported on the shaft and sealed at motor end. The motor speed is precisely controlled by control unit and sealed at motor end. The motor speed is precisely  controlled by control unit and can be run in both directions. The ...

Dead Weight Pressure Gauge Tester

Technical0025

Dead Weight Pressure Gauge Tester
For calibration of Pressure Gauges and other sensing, transmitting and recording pressure instruments. Relationship between pressure acting on the known area of a vertically free floating piston producing a force balanced by known dead weight is made use of in the Dead Weight Pressure Gauge Tester.  ...

Milling Tool

Technical0026

Milling Tool

This is a simple and essay to understand set up introduce by sharp techno systems to study the behavior of cutting forces during milling operation in three directions. With this unit students can evaluate cutting depth, speed and feed. The unit works on standard method of octagonal ring with strain gauges. It is in to part one mechanical rings sandwiched between two M.S. ...

Grinder Tool

Technical0027

Grinder Tool

This a simple set up to study the various forces resolved during grinding operation, designed by sharp techno system for demonstration purpose for the students undergoing tool desing study. This unit works on octagonal ring method using strain gauge as a sensor. A two channel digital force indicator facilitates to measure both forces simulteniously

Lathe Tool

Technical0028

Lathe Tool

This is a strain gauge type two component lathe tool dynamometer designed to measure vertical and horizontal forces on the while orthogonal cutting process. The unit is in two parts one is mechanical sensing unit or tool holder, which can mounted on the top of the Ross slide after removing swivel base and compound slide of a lathe and digital force indicator. With this ...

Drilling Tool

Technical0029

Drilling Tool

This is a armed wheel type strain gauge drill tool dynamometer designed to measure thrust and torque during drilling operation. This Dynamometer is suitable for drilling a hole up to 25mm size in mild steel. With this Dynamometer students can study the change in these force by varying speed, cut and feed


FEATURES:


    Rigid in ...

Lathe Tool

Technical0030

Lathe Tool
This is a strain gauge type two component lathe tool dynamometer designed to measure vertical and horizontal forces on the while orthogonal cutting process. The unit is in two parts one is mechanical sensing unit or tool holder, which can mounted on the top of the Ross slide after removing swivel base and compound slide of a lathe and digital force indicator. With this Dynamometer ...

Drilling Tool

Technical0031

Drilling Tool
This is a armed wheel type strain gauge drill tool dynamometer designed to measure thrust and torque during drilling operation. This Dynamometer is suitable for drilling a hole up to 25mm size in mild steel. With this Dynamometer students can study the change in these force by varying speed, cut and feed

FEATURES:

    Rigid in construction ...

Single Stage Air Compressor Test Rig

Technical0032

Single Stage Air Compressor Test Rig

The test rig comprises of a Single stage air compressor fitted with an air tank with orifice, pressure gauges, and an energy meter to measure the input & a Temperature indicator measures the temperatures at various points. The compressor is mounted on air receiver along with the motor, and is provided with air relief valve (safety) and a pressure ...

Two Stage Air Compressor Test Rig

Technical0033

Two Stage Air Compressor Test Rig

The test rig comprises of a two-stage air compressor fitted with an air tank with orifice, pressure gauges 9 an energy meter to measure the input & a Temperature indicator measures the temperatures at various points. The compressor is mounted on air receiver along with the motor, and is provided with air relief valve (safety) and a pressure switch. ...

Rotary Air Compressor Test Rig

Technical0034

Rotary Air Compressor Test Rig

The Apparatus consists of a rotary vane compressor driven by an electric

motor; Air intake is measured by an orifice meter and manometer, Discharge

"pressure is measured by a pressure gauge. Power input of the compressor

measured by an Energymeter. Thus the students can determine volumetric

efficiency, power consumption and ...

Centrifugal Blower Test Rig

Technical0035

Centrifugal Blower Test Rig

The apparatus consists of a spiral casing, which houses an impeller.

Impeller is driven by a variable speed D.C. motor. Three, interchangeable

impellers, viz. Radial forward and Backward curved vanes are provided with

the unit. Digital indicators are provided for speed of impeller. A venture

provided measures the discharge. Thus ...

Water Cooling Tower Apparatus

Technical0036

Water Cooling Tower Apparatus

The apparatus consists of a forced draught, counter flow type-cooling tower. A blower supplies cooling air. Air enters the tower at the bottom. Hot water is, obtained from a geyser. Hot water is sprayed over the mesh packing through the nozzles and it flows downwards. Evaporative cooling of water occurs due to the current of air and water gets cooled. This ...

SEPARATING & THROTTLING CALORIMETER

Technical0037

SEPARATING & THROTTLING CALORIMETER
The steam passing out from  separating calorimeter may still contain some water vapour , in it . in other words it may not be absolutely dry . again , in a throttling calorimeter steam after passing through the throttle valve must be superheated or at least dry saturated . this limits the extent of dryness fraction that can be reliably ...

Steam Power Plant Trainer

Technical0038

Steam Power Plant Trainer

Steam Power Plant Working Unit – This Unit Helps The Students To Understand The Complete System Of A Thermal Power Plat.


    Heat Energy Converts Water Into Steam

    Steam Pressure When Moves A Engine Or Turbine Produces Mechanical Energy

    Finally Mechanical Energy Is Converted ...

Hydraulic Trainer Classic

Technical0039

Hydraulic Trainer Classic

 We are manufacturing cylinders for industrial applications. Our cylinders can withstand pressure up to 160 Bar.

·         Mobile and self-contained unit, only electrical connections are required.

·         Simplicity of operation and designed for ...

Hydraulic Trainer Electrohydraulic

Technical0040

Hydraulic Trainer Electrohydraulic

1.        software for simulation of Hydraulic circuits.


2.        We are manufacturing cylinders for industrial applications. Our cylinders  can withstand pressure up to 160 Bar.


3.        Mobile and ...

Pneumatic Trainer-Basic

Technical0041

Pneumatic Trainer-Basic

    Operation of a Single Acting Cylinder


    Speed Control Of Single Acting Cylinder


    Operation of a Single Acting Cylinder with And Gate


    Operation of Pneumatic Motor


    Speed Control of Pneumatic Motor

ELECTROPNEUMATIC Training

Technical0042

ELECTROPNEUMATIC Training

    Intoduction of Relay and Contactor.

    Introduction of Proximity Sensor, Capacitive & Photoelectric Sensor, Limit Switch.

    Introduction to Pressure Switch, Electrical Counter, ON Timer & OFF Timer.

    Operation of single acting cylinder with single sol. valve and ...

DIGITAL BOMBB CALORIMETER

Technical0043

BombB Calorimeter outfit provides a simple and inexpensive method for determination of heat of combustion of organic matter and the calorific value and sulphur content of solid and liquid fuel. The outfit supplied is complete for analysis as per the method recommended by British Standard Institution BS 1016. All parts of the outfit have been finished of petroleum and British Standard ...

Open Wind Tunnel Apparatus

Technical0044

Open Wind Tunnel Apparatus

A wind tunnel is the classic experiment system for aerodynamic flow experiments. The model being studied remains at rest while the flow medium is set in motion, and thus the desired flow around the model is generated.


Open wind tunnel used to demonstrate and measure the aerodynamic properties of various models. For this purpose, air is drawn in ...

Thin Cylinder Apparatus

Technical0045

Thin Cylinder Apparatus

A heavy bench top unit for studying the stress and strain in a thin walled cylinder under internal pressure. A thin walled cylinder is mounted between two support blocks. Internal pistons and seals create oil sealing. A handwheel at one end of the apparatus enables the cylinder end conditions to be adjusted to either open or closed. The internal pressure is ...

REYNOLD�S APPARATUS

Technical0046

REYNOLD S APPARATUS
The Set-up is designed to verify Reynold s Apparatus experimentally. The Apparatus consists of a glass tube which one end having bell mouth entrance connected to a water tank. At the other end of the glass tube a cock is provided to vary the rate of flow. Flow rate of water can be measured with the help of Measuring Cylinder and Stop Watch, supplied with the set-up. A ...

BERNOULLIS THEOREM APPARATUS

Technical0047

BERNOULLI S THEOREM APPARATUS
The Set-up is designed to verify Bernoulli’s Theorem experimentally. Set up consists of a one piece clear acrylic test section with convergent and divergent part section, supply tank, measuring tank, inlet water tank and pump for closed loop water circulation. The test section is connected to Piezometer tubes through pressure tapping at different ...

DISCHARGE OVER NOTCHES APPARATUS

Technical0048

DISCHARGE OVER NOTCHES APPARATUS

The Lab setup consists of a channel having sufficient length and width in which water is supplied from the bottom. Required Notch is fitted at one end of this channel .A hook gauge with Vernier scale is fitted to measure the height of fluid in flow channel. Arrangement for fixing interchangeable notches is made. Set of three brass notches, i.e. ...

VENTURIMETER & ORIFICEMETER CALIBRATION SET-UP

Technical0049

VENTURIMETER & ORIFICEMETER CALIBRATION SET-UP

The apparatus consists of two pipelines emerging out from a common manifold. One pipeline contain a Venturimeter, second contains an Orifice. The pressure tapings from the Venturimeter and Orificemeter are taken to differential manometer to measure pressure difference. The Venturimeter and Orificemeter are connected in parallel and ...

STUDY OF PIPE FITTING

Technical0050

STUDY OF PIPE FITTING
The Set-up consists of a ½ bend and elbow, a sudden expansion & sudden contraction fitting from 15 mm to 25 mm, ball valve and gate valve. Pressure tapings are provided at inlet and outlet of these fittings under test. A differential manometer fitted in the line gives pressure loss of individual fitting. Present Set-up is self-contained water ...
